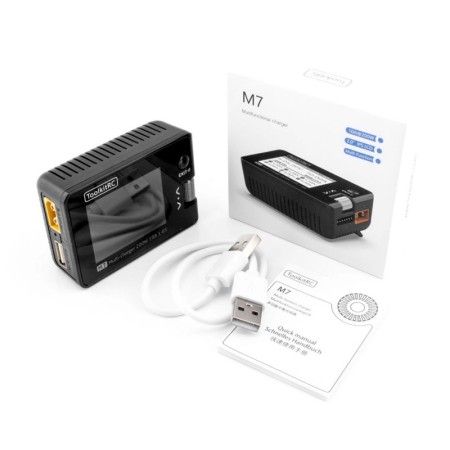

ToolkitCaricatore RC M7 LiPo 1-6S 10A CC 7-28V
Il caricabatterie M7 è più piccolo, leggero e potente quasi quanto il caricabatterie M7AC. Con una varietà di funzioni diverse come la carica e la scarica dell'equilibrio. Tuttavia, può essere utilizzato anche come dispositivo di misurazione del segnale o direttamente come sorgente di segnale in termini di segnali PWM, PPM e SBUS.
(modificale nel modulo Rassicurazioni cliente)
(modificale nel modulo Rassicurazioni cliente)
(modificale nel modulo Rassicurazioni cliente)
Il caricabatterie M7 è più piccolo, leggero e potente quasi quanto il caricabatterie M7AC. Con una varietà di funzioni diverse come la carica e la scarica dell'equilibrio. Tuttavia, può essere utilizzato anche come dispositivo di misurazione del segnale o direttamente come sorgente di segnale in termini di segnali PWM, PPM e SBUS.
Caratteristiche:
- Potenza di carica fino a 300 W e corrente di carica massima di 15 A
- Massimo. Potenza di scarica 300W
- Dispositivo multifunzione
- Caricabatterie
- Misuratore di segnali di tensione, resistenza, PWM/PPM/SBUS
- Riproduzione di segnali PWM/PPM/SBUS
- Interfaccia utente multilingue con uscita vocale
- Aggiornabile tramite USB
- Vari controlli di sicurezza
Specifiche tecniche:
| Tensione di ingresso: | CA 100-240 V, max. 100 W CC 7-35 V, max. 20A |
| Potenza di carica: | 0,1-15 A, 300 W |
| Potenza di scarica: | 0,1-15 A, 300 W (modalità Rec/Ext.) 0,1-3 A, 15 W (modalità interna) |
| Precisione di ricarica: | <0,005 V |
| USB A: | 5.0V@10W (o aggiornamento) |
| Equilibrio corrente: | 800 mA, 4,2 V |
| Celle LiPo/LiFe/LiIon/LiHV | 1-6S |
| Celle: NiMH/NiCd | 1-16S |
| Tensione della batteria Pb: | 1-10 sec |
| voltaggio: | 1.0V-5.0V, 1-6S |
| Schermo: | LCD IPS da 2,4'' 320x240px |
| Carta TF: | Supporta da 128 MB a 16 GB |
| Dimensioni: | 112x73x38mm |
| Peso: | 245 g |
Misurazione e uscita:
| Misurazione | PWM | 880us-2200us, 20-400hz |
| PPM | 880us-2200us x8 CH, 20-50hz | |
| SBUS | 880us-2200us x16 CH, 20-100hz | |
| Produzione | PWM | 500us-2500us, 20-1000hz |
| PPM | 880us-2200us x8 CH, 50hz | |
| SBUS | 880us-2200us x16 CH, 74hz | |
| Energia | 0,5-15 A, 1-28 V, modalità: CC+CV |
Consegna:
1x caricatore M7AC
1x cavo USB
1x manuale
- Etá Consigliata
- 14+
