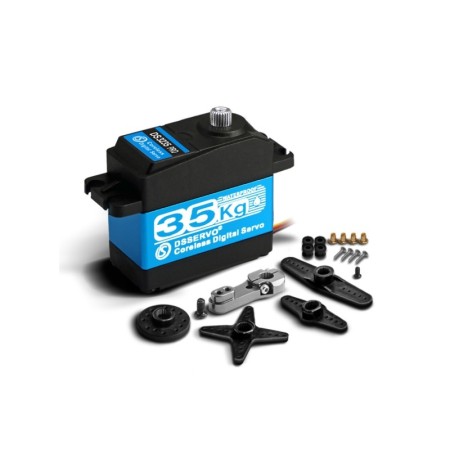

Servocomando DS3235 PRO Digital Coreless 45KG/0,095sec@8,4V
DSSERVO DS3235 PRO - Servo senza nucleo da 35 kg con protezione IP66
(modificale nel modulo Rassicurazioni cliente)
(modificale nel modulo Rassicurazioni cliente)
(modificale nel modulo Rassicurazioni cliente)
- Potente motore coreless con coppia fino a 45 kgcm
- Robusta custodia interamente in metallo con protezione IP66 da polvere e acqua
- Tempo di risposta molto rapido: fino a 0,095 sec/60°
- Doppi cuscinetti a sfera per un movimento preciso
- PWM compatibile con banda morta di 2 µsec
- Ideale per fuoristrada 1/10 e 1/8, crawler, truggy, buggy e robotica
Specifiche tecniche:
| voltaggio: | 5,0 V | 6,0 V | 7,4 V | 8,4 V |
| Velocità: | 0,16 secondi/60° | 0,13 secondi/60° | 0,11 secondi/60° | 0,095 secondi/60° |
| Coppia (stallo): | 31 kgcm | 35 kgcm | 41 kgcm | 45 kgcm |
| Motore: | Senza nucleo | |||
| Rapporto di trasmissione: | 275 | |||
| Tipo: | Digitale (PWM) | |||
| Frequenza di controllo: | 50330Hz | |||
| Cuscinetti: | Doppio | |||
| Dimensioni: | 40 × 20 × 38,5 mm | |||
| Peso: | 60 g | |||
| Gamma di angoli: | 180° o 270° (500-2500µs) | |||
| Grado di impermeabilità: | IP66 | |||
| Zona morta: | 2µs | |||
- Etá Consigliata
- 14+
- Alimentazione
- Elettrica
