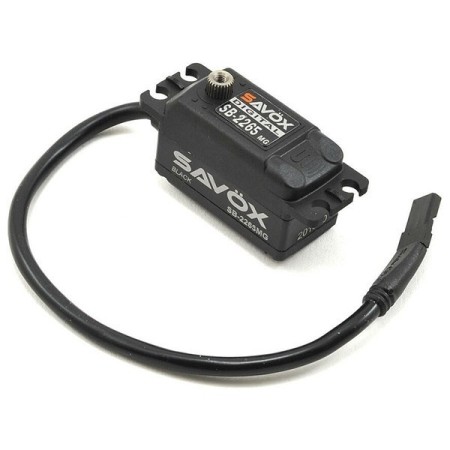

SAVOX SB-2265MG High Voltage Low Profile Digital Brushless Servo Low Profile 7,4V 12kg/0,08sec
SAVOX SB-2265MG High Voltage Low Profile Digital Brushless Servo Low Profile 7,4V 12kg/0,08sec
(modificale nel modulo Rassicurazioni cliente)
(modificale nel modulo Rassicurazioni cliente)
(modificale nel modulo Rassicurazioni cliente)
Servocomando Savox SB2265MG Brushless Low Profile
Set di ingranaggi in metallo garantisce durata in situazioni difficili.
Ideale per auto in scala 1/10 che richiedono un servo ad alta velocità
Tipo/dimensione servo: basso profilo
Applicazione: automodelli RC 1/10
Tipo di motore: Brushless
Materiale dell'ingranaggio: acciaio
Specifiche
- Tensione in ingresso (V): 7,4 V
- Coppia a 7,4 V - 12,0 kg
- Velocità a 7,4 V - 0,08 sec/60 gradi
- Dimensioni L x P x A (mm): 40,8 x 20,2 x 25.
- Peso: 57,0 g
- Dimensione della scanalatura: 25T
Dettagli tecnici - Temperatura operativa: -10° - 50°C
- Corrente di funzionamento (senza carico): 180 mA a 6,0 V, 220 mA a 7,4 V
- Corrente di stallo (a bloccato): 3700 mA a 6,0 V, 4600 mA a 7,4 V
- Corrente inattiva: 5 mA a 6,0 V, 5 mA a 7,4 V
- Lunghezza del filo: 200 ± 5 mm
- Scanalatura dell'ingranaggio di uscita: 25 denti
- Cuscinetti: 2BB
- Corsa operativa: 90° (1000 → 2000 µ secondo)
- Posizione neutra: 1500 µ secondo
- Intervallo di larghezza dell'impulso: 800 → 2200 µ al secondo
- Corsa massima: circa 130° (900 → 2100 µ secondo)
- Frequenza di aggiornamento: 333 Hz
- Tipo di motore: Brushless
- Etá Consigliata
- 14+
