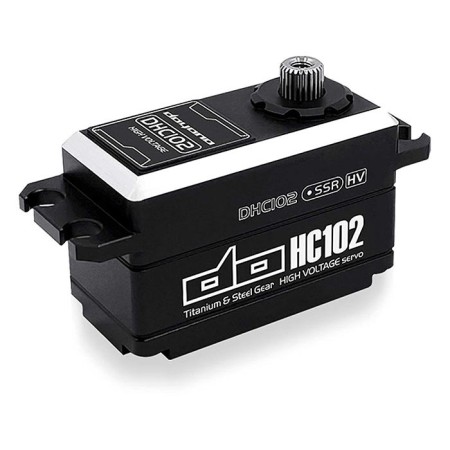

DOYONO DYNDHC102 Coreless Servo HV Basso Profilo
Doyono offre servi di alta qualità a un prezzo molto competitivo. Questo potente servo, in grado di spostare 15 kg per cm grazie al suo motore coreless, ha un ingranaggio in acciaio al titanio ed un alloggiamento in alluminio resistente alle intemperie. Di conseguenza, garantisce le giuste prestazioni e quindi molto piacere di guida.
Caratteristiche:
- Servo ad alta tensione
- Ingranaggi realizzati in resistente titanio e acciaio
- Corpo in alluminio leggero
- Molto resistente agli agenti atmosferici
- Tensione di esercizio: 6,0-8,4 V
- Banda morta 2µs, punto neutro 1520µs
- Lunghezza cavo 180 mm
Specifiche tecniche:
- Tensione: 6,0 V 8,4 V
- Velocità di attuazione: 0,073 sec 0,054 sec
- Coppia: 11,0 kg cm 15,0 kg cm
- Motore: senza core
- Cambio: Titanio/Acciaio
- Cuscinetti: sì, doppi
- Flessione della molla: circa 115° (a 800: 2200µs)
- Corrente di riposo: 4 mA @ 6,0 V
- Corrente nominale: 0,2 A @ 6,0 V
- Corrente inversa: 2,6 A @ 6,0 V
- Dimensioni: 41,0 x 20,0 x 26,3 mm
- Peso: 55,0 g
- Dentatura: 25T
- Etá Consigliata
- 13+
